Disassembling Of the old working pc
In this Instruction, I will give a full documentation of how to disassemble a desktop PC, for parts. The specific computer that I will demonstrate with is an HP Media Center PC m7640n with a dead motherboard. Every computer is different, but this is a general guide.
If you don't fully grasp what I mean when I am describing something, please refer to the pictures!
Step 1.
Selection the required tools and equipment:
1.
Screw Driver.
2.
Multimeter.
3.
Soldering iron.
4.
Contract cleaner.
5.
Brush.
Step
2.
To
turn off the power:
If
the PC being running, must shut down the pc before disassembling.
There are many ways to shut down
your PC—you can turn the PC off completely.
Turn
your PC off completely
For Windows 10
|
Select the Start
button and then select Power
> Shut down. |
For Windows 8.1 / Windows RT
8.1
|
Move your mouse to the lower
left-hand corner of the screen and right-click the Start
 button or press Windows logo key + X on your
keyboard. Tap or click Shut down or sign out and choose Shut down. |
For
Windows 7 Click the
Start button
 and then click the Shut down button. |
Clic
|
Step 3: Unplugging
The first thing you do, is unplug every cable that's plugged in to your
computer. That includes the following cables:
So pretty much just unplug every cable from
your computer.
|
Step 2: Outer Shell/Casing
Now that your computer is fully unplugged, move your PC to a clean work
space, preferably a carpet. The carpet is better than tile, because screws and
other small parts will roll around.
NOTICE:
If you are working on a carpet, about every five minutes touch something that is grounded (Sink faucet\pipe, wire coming from the ground part of a wall outlet). This is so you don't shock your motherboard or other parts.
First off, unscrew the four screws on the back of the computer. On most computer cases, there will be large knobs that you can unscrew by hand or by screw driver on the back-right side of the computer. The left side has small screws because on that side you can't access much on the inside.
Once the screws are removed, you can remove the side panels. On most computers, they just slide off. Start with the left side panel (the side that once had the knobs), slide it towards the back of the computer. Now you can remove the left panel. Just like the other one, slide it towards the back of the computer.
If you are working on a carpet, about every five minutes touch something that is grounded (Sink faucet\pipe, wire coming from the ground part of a wall outlet). This is so you don't shock your motherboard or other parts.
First off, unscrew the four screws on the back of the computer. On most computer cases, there will be large knobs that you can unscrew by hand or by screw driver on the back-right side of the computer. The left side has small screws because on that side you can't access much on the inside.
Once the screws are removed, you can remove the side panels. On most computers, they just slide off. Start with the left side panel (the side that once had the knobs), slide it towards the back of the computer. Now you can remove the left panel. Just like the other one, slide it towards the back of the computer.
Please refer to
the pictures if you are confused!
Step 3: Outer Shell/Casing (cont.)
In the last step I removed both side panels. In this step, I will be
removing the front and top panels.
Just
like the side panels, the top panel slides off. Also like the side panels, the
top one slides toward the back of the computer. The front panel clips on to the
metal frame with four tabs, so you must push them in and slide the whole panel
forward.
Refer to the pictures to see what I mean by "clips".
Refer to the pictures to see what I mean by "clips".
Step 4: System Fan
Now that the case is off, I will begin to remove the internal components.
Most
computers have two fans: the system fan, the one blowing air into the computer,
and the CPU fan, the one blowing air onto the CPU heat sink. I will start by
removing the system fan first. It is located at the back side of the computer,
the side with all the component plugins.
First, unplug the fan from the motherboard. You can find the plug by following the wire from the fan. It should be labeled "SYS_FAN1". Next, you will have to unscrew the fan from the outside. You should now be able to lift the fan out of the PC.
First, unplug the fan from the motherboard. You can find the plug by following the wire from the fan. It should be labeled "SYS_FAN1". Next, you will have to unscrew the fan from the outside. You should now be able to lift the fan out of the PC.
Step 5: CPU Fan
Now that the system fan is out, we can remove the CPU fan.
The
CPU fan is located right on top of the CPU heat sink, which is a large piece of
metal with fins on the top. The CPU fan plugs into the motherboard in an
awkward place, that is hard to access. But just follow the wires and you should
easily find it. It is labeled "CPU FAN1". To remove the fan from the
heat sink, remove the four screws securing it in place.
Step 6: Power Supply
The power supply manages all the power for the machine.
The power supply is a large
metal box located at the upper-back part of the computer. They sometimes come
with an on/off switch that is acessable from the back of the computer. The main
power cord also plugs into the back of the power supply.
The power supply supplies power to every component in a computer, therefore it has the most wires out of every other component in the computer. The first thing I will do is unplug every wire coming from the power supply. The list below is every thing that I had to disconnect:
The power supply supplies power to every component in a computer, therefore it has the most wires out of every other component in the computer. The first thing I will do is unplug every wire coming from the power supply. The list below is every thing that I had to disconnect:
- Motherboard
(very large connector/plug)
- CD/DVD
drive[s] power
- Internal
hard drive power
- Portable
hard drive slot power
Once
everything is unplugged, unscrew the four screws holding the power supply in
place, on the back of the computer. Next, push the power supply from the
outside, then lift it out.
Step 7: CD/DVD Drive
I have one CD/DVD drive, but you might have two. If so, follow this step
twice!
The CD/DVD drive is one of the easiest components to remove.
First, unplug the ribbon from the back of the drive. Once that is completed,
pull on the tab securing the drive in place, then push it out from the inside.
If you don't have a second drive, there should be a flat piece of metal covering the drive slot. Follow the inscribed instructions to remove it.
If you don't have a second drive, there should be a flat piece of metal covering the drive slot. Follow the inscribed instructions to remove it.
Step 8: Card Reader
Most new computers have built in card readers, but old computers almost
never have them.
Just like every other component, unplug the wire first. On
my computer, there is just one screw holding the card reader in place. Your
computer might have more, so just unscrew them all! After that, the card reader
should be removeable.
Most card readers have a protective plastic cover on the part that you can see from the external computer, which can be removed by lifting the tabs on the top and bottom. Refer to the pictures.
Most card readers have a protective plastic cover on the part that you can see from the external computer, which can be removed by lifting the tabs on the top and bottom. Refer to the pictures.
Step 9: Hard Drive & Portable Hard Drive Slot
I have included both components together in one step, because in order to
remove the hard drive, you must remove the portable hard drive slot first.
First off, de-attach the connector at the back of the slot,
and unplug the other end from the motherboard. Also unplug the SATA cable from
the motherboard and the hard drive. The portable hard drive slot is secured the
same way the CD/DVD drive is, with a tab. Pull on the tab, then slide the slot
out.
To remove the hard drive from the side of the slot, unscrew the four screws securing it in place. You must be very careful to not drop the hard drive, as it is very delicate!
To remove the hard drive from the side of the slot, unscrew the four screws securing it in place. You must be very careful to not drop the hard drive, as it is very delicate!
Step 10: Expansion Cards
Expansion cards are like small upgrades to your computer.
Expansion cards give a computer
new capabilities, once installed. Different examples are:
- Bluetooth
- Wireless
Internet
- Ethernet
- TV
Different computers come stock with different cards. My
computer came stock with a TV and Ethernet card. If you only have one, remove
that one. If you have two, remove the two!
There should be a single screw on top of each expansion card slot, whether it's occupied, or empty. Remove the screws on the occupied card slots. Once the screws are removed, you should be able to remove the cards by pulling them carefully upward. Some expansion cards have cables leading to other parts of the computer, for example, my TV card is connected to the connectivity center on the front of my computer. You will have to unplug any cables attached to an expansion card.
There should be a single screw on top of each expansion card slot, whether it's occupied, or empty. Remove the screws on the occupied card slots. Once the screws are removed, you should be able to remove the cards by pulling them carefully upward. Some expansion cards have cables leading to other parts of the computer, for example, my TV card is connected to the connectivity center on the front of my computer. You will have to unplug any cables attached to an expansion card.
Step 11: Connectivity Center Cables
Most new computers have a connectivity center located at the front of the
computer.

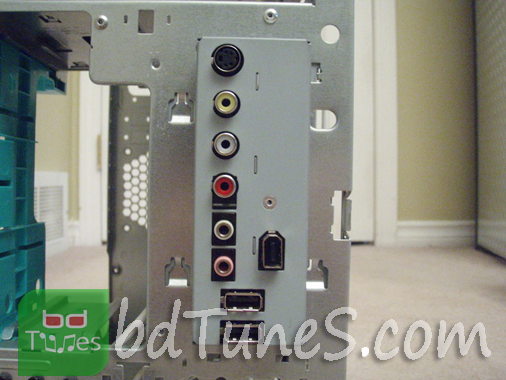

The
connectivity center is the area on the front of the computer where there is
many input sections, like usb, firewire, microphone, headphones, video, etc.. I
won't remove the whole connectivity center in this step, but I will unplug all
the cables coming from it.
Do that (unplug all cables), then unplug the wires leading from the power button, hdd light, and power light.
Do that (unplug all cables), then unplug the wires leading from the power button, hdd light, and power light.
Step 12: RAM (Random Access Memory)
RAM allows for the near instantaneous transfer of information to and from
the CPU.
So
pretty much, the more RAM you have, the faster your computer runs. Most
computers have 4 RAM slots, and two RAM chips. My computer came stock with two,
but yours might have more or less. To remove the RAM, push down on both tabs
holding the RAM in place, which are located at both ends of the RAM. Please see
the pictures.
Step 13: Power Button & Power LED + HDD LED
The power button, power LED, and hard drive LED are all within a plastic
"chasis".
There
is a zip tie holding the wires/cables for the front connectivity center and
front power button/LEDs. Cut it.
To remove the chasis, press in on the tabs that are located on the chasis' side. Refer to the pictures to see the tabs. Once the tabs are being pressed in, pull the whole chasis out of the computer.
To remove the LEDs from the "chasis", push them from the front with a screw driver. To remove the button, you will need to push it from the back, the side with the wires. For clarification, see the pictures.
Not all computers may be set up like this, so your computer will probably be different. Just use common sense to find a way!
To remove the chasis, press in on the tabs that are located on the chasis' side. Refer to the pictures to see the tabs. Once the tabs are being pressed in, pull the whole chasis out of the computer.
To remove the LEDs from the "chasis", push them from the front with a screw driver. To remove the button, you will need to push it from the back, the side with the wires. For clarification, see the pictures.
Not all computers may be set up like this, so your computer will probably be different. Just use common sense to find a way!
Step 14: Connectivity Center
Not every computer has a connectivity center, but most new ones do.
Like
I said in step 11, "The connectivity center is the area on the front of
the computer where there is many input sections, like usb, firewire,
microphone, headphones, video, etc.". But this time, I will remove the
whole component, not just unplug the cables\wires!
First thing, unscrew the single screw holding it in place. There might be a different amount of screws, in different locations on your computer, but just unscrew them all! One the screw[s] are removed, the whole component should slide into the inside of the computer, which can then be removed.
Just like every other step, refer to the pictures if you are confused!
First thing, unscrew the single screw holding it in place. There might be a different amount of screws, in different locations on your computer, but just unscrew them all! One the screw[s] are removed, the whole component should slide into the inside of the computer, which can then be removed.
Just like every other step, refer to the pictures if you are confused!
Step 15: Motherboard
The motherboard is well, the mother of the computer! It is what links every
component in the computer together.
My
motherboard is fried, but I will remove it anyway. The motherboard links every
component in the computer together. The CPU, RAM, and expansion cards are
attached directly to it, and every other part of the computer is in one way or
another attached to it.
The motherboard has seven screws holding it to the frame, which are indicated by large white circles around them. Remove those seven, then lift the motherboard out of the frame.
The motherboard has seven screws holding it to the frame, which are indicated by large white circles around them. Remove those seven, then lift the motherboard out of the frame.
Step 16: Done!
This concludes my Instructable "Disassemble a Computer"! In this
step, I will give an overview of every component you get out of a computer with
a fried motherboard.
Please remember to rate, and ask questions if you find something
confusing!
Case:
Case:
- Metal
Right Panel
- Metal Left
Panel
- Plastic
Front Panel
- Plastic
Top Panel
- Metal
& Plastic Frame
Hardware:
- Hard Drive
- CD/DVD
Drive
- Power
Supply
- Card
Reader
- Expansion
Cards
- RAM Chips
- Connectivity
Center
Cables\Wires:
- SATA Cable
(Hard Drive to Motherboard)
- Portable
HDD Dock and Wires (Power and Data from Portable HDD to Motherboard)
- Accessory
Wire (Connected Card Reader to Motherboard)
- Drive
Ribbon (CD/DVD Drive to Motherboard)
Miscellaneous:
- 33 Screws
- Drive Slot
Cover
- 2
Expansion Card Slot Covers
- Plastic
Piece (I refured to it as a "chasis" for a button and LEDs in
step 13)
- Large
System Fan
- Small CPU
Fan
- Portable
HDD Slot
